Edelstahlrohrbogen
Weitere Durchmesser und Radien auf Anfrage
Passende Rohrverbinder am besten direkt mitbestellen !
Aus hochwertigem Edelstahlrohr
Alle gängigen Durchmesser
Werkstoff Nr. 1.4301
Innennaht geschabt
Wir erfüllen die DIN EN 10217-7 !!
beste Qualität
andere Abmesungen auf Anfrage

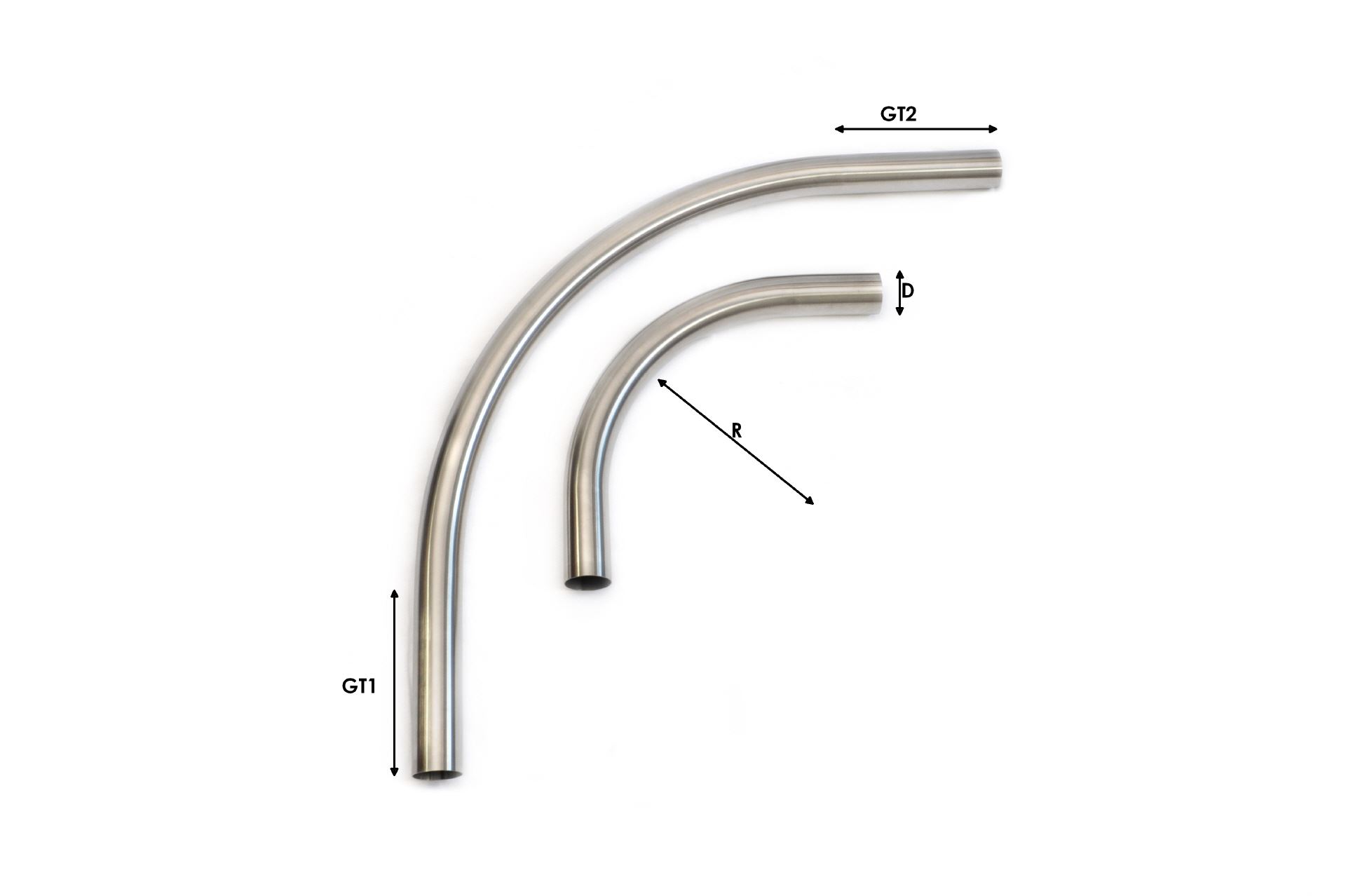

Artikelnummer |
Rohraußendurchmesser |
Radius(mm) |
Gradzahl |
GT1 / GT2 |
RBE-040015-90250-1010 |
40,0 x 1,5 |
250 |
90 |
100/100 |
RBE-040015-45250-1010 |
40,0 x 1,5 |
250 |
45 |
100/100 |
RBE-040015-90500-2020 |
40,0 x 1,5 |
500 |
90 |
200/200 |
RBE-040015-45500-2020 |
40,0 x 1,5 |
500 |
45 |
200/200 |
RBE-050015-90250-1010 |
50,0 x 1,5 |
250 |
90 |
100/100 |
RBE-050015-45250-1010 |
50,0 x 1,5 |
250 |
45 |
100/100 |
RBE-050015-90500-2020 |
50,0 x 1,5 |
500 |
90 |
200/200 |
RBE-050015-45500-2020 |
50,0 x 1,5 |
500 |
45 |
200/200 |
RBE-060315-90250-2020 |
60,3 x 1,5 |
250 |
90 |
200/200 |
RBE-060315-45250-2020 |
60,3 x 1,5 |
250 |
45 |
200/200 |
RBE-060315-90500-2020 |
60,3 x 1,5 |
500 |
90 |
200/200 |
RBE-060315-45500-2020 |
60,3 x 1,5 |
500 |
45 |
200/200 |
RBE-060320-90250-2020 |
60,3 x 2,0 |
250 |
90 |
200/200 |
RBE-060320-45250-2020 |
60,3 x 2,0 |
250 |
45 |
200/200 |
RBE-060320-90500-2020 |
60,3 x 2,0 |
500 |
90 |
200/200 |
RBE-060320-45500-2020 |
60,3 x 2,0 |
500 |
45 |
200/200 |
Verschleissfeste Rohrbogen
zur Förderung abrasiver Medien
Hochverschleißfeste Edelstahl-Rohrbogen mit sauberer Oberfläche
10 bis 20-fache Standzeit im Vergleich zu Edelstahl 1.4301
Standard-Rohrverbinder verwendbar
10 bis 20-fache Standzeit im Vergleich zu Edelstahl 1.4301
Wir erfüllen die DIN EN 10217-7 !!
bei Förderung abrasiver MedienStandard-
Rohrverbinder verwendbar
lebensmittelunbedenklich
optimales Preis-Leistungs-Verhältnis
Artikelnummer |
Rohraußendurchmesser |
Radius(mm) |
Gradzahl |
GT1 / GT2 |
RBV-040015-90250-1010 |
40,0 x 1,5 |
250 |
90 |
100/100 |
RBV-040015-45250-1010 |
40,0 x 1,5 |
250 |
45 |
100/100 |
RBV-040015-90500-2020 |
40,0 x 1,5 |
500 |
90 |
200/200 |
RBV-040015-45500-2020 |
40,0 x 1,5 |
500 |
45 |
200/200 |
RBV-050015-90250-1010 |
50,0 x 1,5 |
250 |
90 |
100/100 |
RBV-050015-45250-1010 |
50,0 x 1,5 |
250 |
45 |
100/100 |
RBE-050015-90500-2020 |
50,0 x 1,5 |
500 |
90 |
200/200 |
RBE-050015-45500-2020 |
50,0 x 1,5 |
500 |
45 |
200/200 |
RBV-060315-90250-2020 |
60,3 x 1,5 |
250 |
90 |
200/200 |
RBV-060315-45250-2020 |
60,3 x 1,5 |
250 |
45 |
200/200 |
RBV-060315-90500-2020 |
60,3 x 1,5 |
500 |
90 |
200/200 |
RBV-060315-45500-2020 |
60,3 x 1,5 |
500 |
45 |
200/200 |
RBV-060320-90250-2020 |
60,3 x 2,0 |
250 |
90 |
200/200 |
RBV-060320-45250-2020 |
60,3 x 2,0 |
250 |
45 |
200/200 |
RBV-060320-90500-2020 |
60,3 x 2,0 |
500 |
90 |
200/200 |
RBV-060320-45500-2020 |
60,3 x 2,0 |
500 |
45 |
200/200 |
Glasrohrbogen
Für allerhöchste Standzeiten beim Einsatz abrasiver Medien
Weitere Durchmesser und Radien auf Anfrage
Werkstoff: Borosilikatglas 3.3
Rohrenden feuerpoliert
mit aufgeklebtem Kupferband am Außenradius
Artikelnummer |
Rohraußendurchmesser |
Radius(mm) |
Gradzahl |
GT1 / GT2 |
RBG-047050-90250-2020 |
47,0 x 5,0 |
250 |
90 |
200/200 |
RBG-047050-45250-2020 |
47,0 x 5,0 |
250 |
45 |
200/200 |
RBG-047050-90500-2020 |
47,0 x 5,0 |
500 |
90 |
200/200 |
RBG-047050-45500-2020 |
47,0 x 5,0 |
500 |
45 |
200/200 |
RBG-056050-45075-1510 |
56,0 x 5,0 |
250 |
45 |
150/100 |
RBG-056050-90250-2020 |
56,0 x 5,0 |
250 |
90 |
200/200 |
RBG-056050-45250-2020 |
56,0 x 5,0 |
500 |
45 |
200/200 |
RBG-056050-90500-2020 |
56,0 x 5,0 |
500 |
90 |
200/200 |
RBG-056050-45500-2020 |
56,0 x 5,0 |
500 |
45 |
200/200 |
RBG-066050-90250-2020 |
66,0 x 5,0 |
250 |
90 |
200/200 |
RBG-066050-45250-2020 |
66,0 x 5,0 |
250 |
45 |
200/200 |
RBG-066050-90500-2020 |
66,0 x 5,0 |
500 |
90 |
200/200 |
RBG-066050-45500-2020 |
66,0 x 5,0 |
500 |
45 |
200/200 |
